Gamma High Voltage Research
RR cover pic03
RR spec small_B

MODEL SELECTOR GUIDE

OUTPUT VOLTAGE KV

60 WATT

150 WATT

300 WATT

600 WATT

1000 WATT

3000 WATT

MILLIAMPERE  OUTPUT CURRENT RATING

1.5

40

100

200

400

667

2000

3

20

50

100

200

333

1000

5

12

30

60

120

200

600

10

6

15

30

60

100

300

15

4

10

20

40

65

200

20

3

7.5

15

30

50

150

30

2

5

10

20

33

100

40

1.5

3.75

7.5

15

25

75

50

1.25

3

6

12

20

60

60

1

2.5

5

10

17

50

80

0.75

1.8

3.75

7.5

12.5

37.5

100

0.6

1.5

3

6

10

30

125

0.5

1.2

2.5

4.8

8

24

150

NA

1

2

4

6.6

20

200

NA

0.75

1.5

3

5

15

300

NA

0.5

1

2

3.3

10

400

NA

0.375

0.75

1.5

2.5

7.5

OPTIONS

1: (ZERO VOLTAGE START INTERLOCK) To prevent  accidental damage to loads, the output voltage control must be set to zero before the high voltage can be applied.



6: (SLAVED BI-POLAR OPERATION) Any two power supplies of the same voltage rating can be operated as a         Bi-Polar pair. One power supply will be acting as the master controller and will control both power supplies from zero to maximum rated output voltage. The output voltage of both power supplies will track each other within 2% from 10% to maximum rated output voltage. Each power supply is also capable of operating independently.

2: (VARIABLE OVERVOLTAGE PROTECTION) This option causes the power supply to shut down when the output voltage exceeds the setting of the overvoltage control potentiometer, located at the rear of the power supply. Adjustable from 20% to 110% of maximum rated output voltage.

3: (VARIABLE OVERLOAD TRIPOUT) This option causes the power supply to shut down when the output current equals the setting of the front panel current control. Adjustable from 20% to 110% of maximum output current of the power supply. Standard feature on 600W, 1KW and 3KW units. Front panel control allows user to activate this feature when desired.

7: (TTL) Compatible “enable” line.

8: (AUXILIARY OUTPUT/FOCUS TAP) This option provides an independent auxiliary output which is variable from zero to maximum rated voltage up to 15KV at 300A maximum. Control is achieved via front panel mounted potentiometer. For other voltages, power levels and multiple auxiliary outputs, please consult factory.

4A: (DIGITAL PANEL METER) Single LED 3.5 digit meter reading both voltage and current. This meter replaces the analog meter normally provided.

9: (REMOTE CONTROL PANEL) Any standard model can be supplied with a remote control panel. This remote control panel replaces the front panel normally provided on standard units, 20 feet of shielded interconnection cable is provided.

4B: (DIGITAL PANEL METER) Dual LED 3.5 digit meter, one for voltage and one for current. This replaces the analog meters normally provided.

10: (BENCH CABINET) A deluxe style cabinet is available for all models.

5: (SLOW START) The slow start option enables the output voltage of the power supply to ramp up to its maximum output volatge setting at a linear rate. This rate is factory set from one to fifteen seconds.

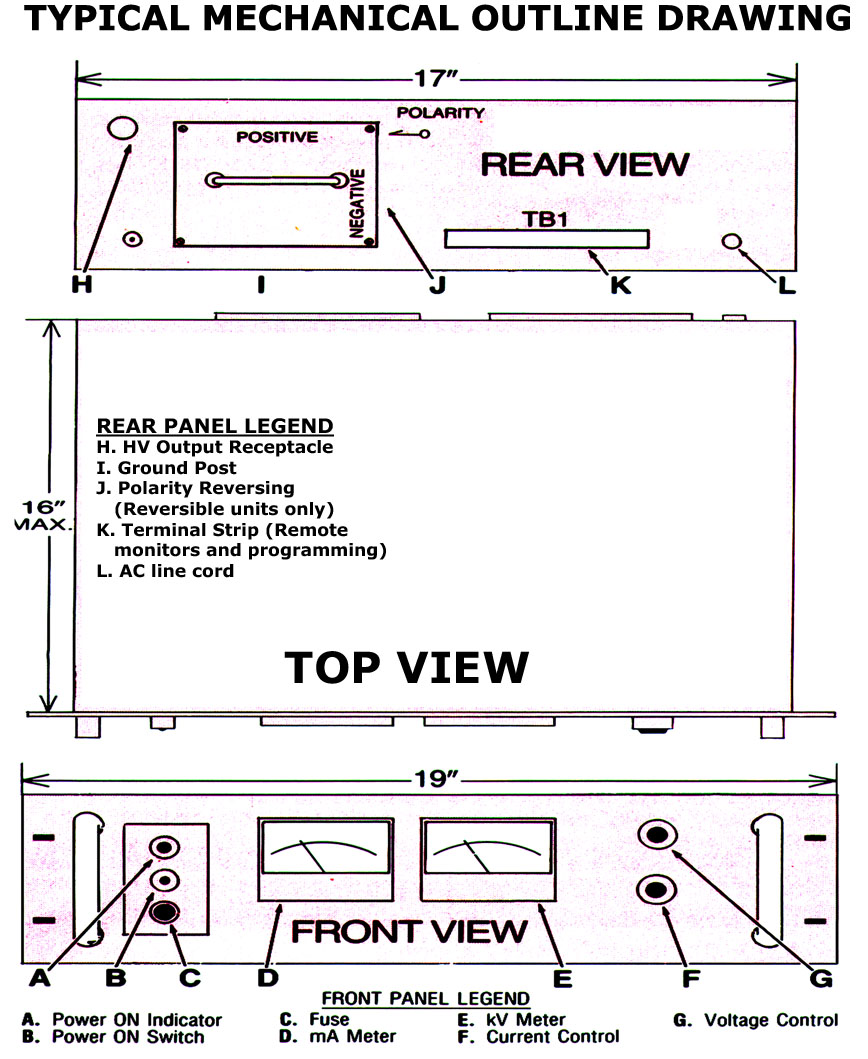

RR outline dwg_small

HEIGHT

60 WATT UNITS

150 & 300 WATT UNITS

600 & 1000 WATT UNITS

3000 WATT UNITS

FIXED

REVERSIBLE

WEIGHT

FIXED

REVERSIBLE

WEIGHT

FIXED

REVERSIBLE

WEIGHT

FIXED

REVERSIBLE

WEIGHT

5



Up to 125KV

Up to 40KV

35 lbs. max.

Up to 125KV

Up to 40KV

35 lbs. max.

Up to 100KV

Up to 20KV

35 lbs. max.

NA

NA

NA

5

OPEN STACK

NA

NA

NA

150 to 400KV

NA

25 lbs. max PLUS HV assy.

150 to 400KV

NA

25 lbs. max. PLUS HV assy

NA

NA

NA

10



NA

50 to 100KV

75 lbs. max.

NA

50 to 100KV

75 lbs. max.

125KV

30 to 100KV

85 lbs. max.

NA

NA

NA

10

OPEN STACK

NA

NA

NA

NA

NA

NA

NA

NA

NA

150 TO 400KV

NA

85 LBS. MAX. plus hv ASSY

15



NA

NA

NA

NA

NA

NA

NA

NA

NA

Up to 125KV

Up to 50KV

150 lbs. max.
